EL Wire adds a new dimension of illumination to your innovative products and new designs.EL Wire's assorted colors makes your products stand out. We will help you to integrate EL Wire into all product designs for enhanced value.
EL Wire come in a variety of diameters and colours. The main characteristics of each wire type are described in the table below. In the following table, one can see the colour legend of the available products.

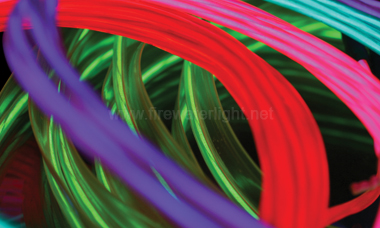

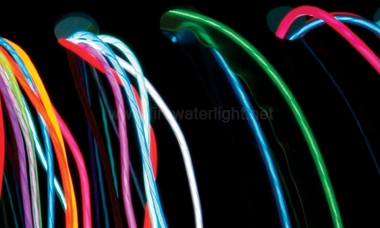

EL Wire- the revolutionary light-emitting Wire - is a continuous, 360-degree self-illuminating product based on breakthrough electroluminescent (EL) technology. Firewater Light is the sole distributor for LyTec® in Africa | |
EL Mini Lytec video
http://www.youtube.com/embed/pBG0pBukUAo |
Product Type
(Common Spec) | Diameter | Power | Brightness
(min/max) | Colours Available | EL Wire Mini cat.# 01C | 1.2 mm | 80V/4000 Hz | 69.6 cd/m2 | lime, red, purple, pink, blue-green ,green, ultramarine, and yellow | | | 100V/2000Hz | 100 cd/m2 | EL Wire General
Purpose
cat.# 01S | 2.3 mm | 80V/4000Hz | 68 cd/m2 | white, blue-green, green, red, pink, lime, orange, purple, hot red, ultramarine, and yellow | | | 100V/2000Hz | 98.4 cd/m2 | EL Wire High
Bright
cat.# 048S | 2.5 mm | 48V/2000Hz | 34.5 cd/m2 | blue-green, lime, red, pink, ultramarine , yellow, purple, and white | | | 100V/2000Hz | 127 cd/m2 | EL Wire Outdoors cat.# 02S | 3.2 mm | 80V/4000Hz | 70.3 cd/m2 | white, blue-green, green, red, pink, lime, orange, purple, blood red, ultramarine, and yellow | | | 100V/2000Hz | 98.5 cd/m2 | EL Wire Fabric (T-Type) cat.# 02T | 3.2 mm
9 mm (tail) | 80V/4000Hz | 69.6 cd/m2 | blue-green, pink, lime, green, red, and ultramarine | | | 100V/2000Hz | 96.9 cd/m2 | EL Wire Double
core
cat.# D01 | 2.8 mm
3.5 mm | 160V/4000Hz | 55 cd/m2 | green, blue-green, red, lime, ultramarine, and yellow | | | 200V/2000Hz | 84.5 cd/m2 | EL Wire Thick Diameter
cat.# 04S/05S | 5 mm | 80V/4000Hz | 81 cd/m2 | blue-green, green, lime, red, orange, ultramarine, yellow, and white | | | 100V/2000Hz | 103.7 cd/m2 |
The following colours are available:
White |
Ultra-Marine |
Blue-Green |
Green |
Lime |
|
Yellow |
Orange |
Red |
Blood-Red |
Pink |
Purple |
|
| Applications of LyTec® include safety jackets & clothing, costume jewellery, Christmas decorations and decor. LyTec® can be used successfully up to 130m in length and the fibre can be bent in all directions, even in acute angles! The wire has 'memory retention' so with proper handling it can be moulded into various shapes. Multiple wires can be placed on on certain drivers to obtain flashing sequences of the different wires. LyTec® is perfect to substitute design-grey areas by adding lighting effects. | |  |


|
